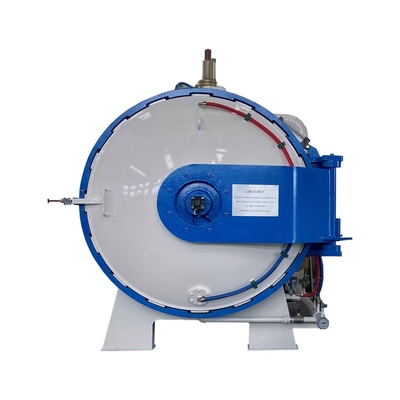

Factory 300 Ton HIP Alloy Induction Sintering Hard Heating Vacuum Hot Press Sintering Furnace

1.0 Sets
MOQ
Factory 300 Ton HIP Alloy Induction Sintering Hard Heating Vacuum Hot Press Sintering Furnace
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Type: Resistance Furnace
Usage: Heat Treatment Furnace
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 2 years
Core Components: PLC
Voltage: 380V
Dimension(L*W*H): custom made
Weight (T): 5 T
Power (kW): 120
Warranty: 2 years
Key Selling Points: Remote Control
Applicable Industries: Manufacturing Plant, foundry
Showroom Location: Russia, South Africa
Chamber material: Cast iron, stainless steel, optional
After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Structure: Horizontal, vertical, batch, continuous
Max temperature: 500C - 1300C (custom made)
Heater: Mo belt, Tungsten, Graphite, SiMo, SiC
Temperature unifor: ±5℃
Heating method: resistance, induction
Vacuum Degree under working: Customizable
Loading capacity: Adjustable
PLC controller: SIEMENS, MITSUBISHI, LG
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Russia, Australia, South Africa
Certificazione: ISO9001:2008 CE
Informazioni di base
Certificazione: ISO9001:2008 CE
Termini di pagamento e spedizione
Packaging Details: Export standard with wood packing
Supply Ability: 20 Set/Sets per Month
Descrizione di prodotto
Products Description

300 ton hard alloy HIP sinter Induction Heating Vacuum Hot Press Sintering Furnace

Vacuum gas quenching furnace is mainly used for cool work & hot work steel, high speed steel, tool steel material vacuum quenching, tempering and solution-ageing process. And it is divided into horizontal and vertical types. The vertical type vacuumgas quenching furnace is especially suitable for the vacuum gas quenching process of large workpieces with easy deformation such as long rod-shaped parts, shafts and plate parts. The workpieces can keep bright and minimal deformation after heat treatment.

The followings are the technical characteristics:
1. The heating element is graphite (Customizable), the thermal insulation layer is the thermal insulation structure of the
composite carbon felt and the soft felt, which can ensure the temperature uniformity.

2. The internal use of the overall telescopic structure telescopic car, with frequency control to ensure smooth delivery of
materials, transfer time is short.

3. Quenching Oil Hot oil pump with heat pump and heat exchanger outside the cooling, quenching oil cooling faster, higher
efficiency.

4. Built-in heat exchanger and forced air circulation cooling mode, jet gas uniform and flow, cooling speed.

5. Dual choice of oil mixing and oil jet cooling method for different types of parts, small deformation of the workpiece.

6. The furnace is equipped with temperature, pressure, water pressure, vacuum and other interlocking features, with a high
degreeof safety protection and prevention functions.

7. With remote control operation, remote fault diagnosis and remote program updates and other functions.
Details Images
Product Paramenters
Model
Working size
(mm)
Ultimate pressure
(pa)
Pressure rising rate(pa/h)
Loading capacity(kg)
Cooling gas pressure(bar)
CDO-VQ-20
200*200*200
4*10-¹~6.7*10-³
0.67
50
6/10/15/20
CDO-VQ-30
300*300*500
4*10-¹~6.7*10-³
0.67
100
6/10/15/20
CDO-VQ-40
400*400*600
4*10-¹~6.7*10-³
0.67
200
6/10/15/20
CDO-VQ-50
500*500*700
4*10-¹~6.7*10-³
0.67
300
6/10/15/20
CDO-VQ-60
600*600*900
4*10-¹~6.7*10-³
0.67
500
6/10/15/20
CDO-VQ-70
700*700*1000
4*10-¹~6.7*10-³
0.67
700
6/10/15/20
CDO-VQ-80
800*800*1200
4*10-¹~6.7*10-³
0.67
1000
6/10/15/20
CDO-VQ-v50
Ø500*700(vertical)
4*10-¹~6.7*10-³
0.67
300
6/10/15/20
CDO-VQ-v70
Ø700*900(vertical)
4*10-¹~6.7*10-³
0.67
500
6/10/15/20
CDO-VQ-v100
Ø1000*1000(vertical)
4*10-¹~6.7*10-³
0.67
800
6/10/15/20
CDO-VQ-v120
Ø1200*1000(vertical)
4*10-¹~6.7*10-³
0.67
1000
6/10/15/20
Max temperature:1320℃ , Temprtature unifromity:±5℃
Application
Feature
Chamber material:Cast iron, stainless steel, optional
Structure:Horizontal, vertical, batch, continuous
Max temperature:500C - 1300C (custom made)
Heater:Mo belt, Tungsten, Graphite, SiMo, SiC
Temperature unifor:±5℃
Heating method:resistance, induction
Vacuum Degree under working:Customizable
Loading capacity:Adjustable
PLC controller:SIEMENS, MITSUBISHI, LG
Packaging & Shipping
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.

II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance

III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.

2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.

3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
